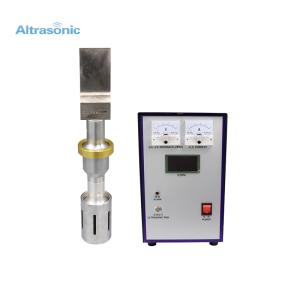

20k Frequency Rubber Latex Ultrasonic Cutter With 82MM Blade

Name: 20k Frequency Rubber Latex Ultrasonic Cutter With 82MM Blade
Brand: Altrasonic
Price: 1 USD

China 20k Frequency Rubber Latex Ultrasonic Cutter With 82MM Blade factory

Brand Name : Altrasonic

Model Number : HS-CR20

Certification : CE

Place of Origin : CHINA

MOQ : 1 unit

Price : Negotiation

Payment Terms : T/T, Western Union

Supply Ability : 5,000 units per month

Delivery Time : 200 Set per month

Packaging Details : carton

Frequency : 20khz

Blade : 82MM

Material : Titanium

Power : 2000w

Weight (KG) : 8KG

Application : Rubber/Plastic/Food

Contact Now

20kHz Rubber Latex Ultrasonic Cutter Efficient Ultrasonic Machine Reliable

Description:

The rubber ultrasonic cutting machine uses the energy of sound waves to cut, does not need a sharp edge, and does not require a lot of pressure, and will not cause edge collapse and damage to the material to be cut. Rubber ultrasonic cutting machine can easily cut resin, rubber, non-woven fabric, film, various overlapping composite materials and food.

Specificion:

Frequency	20Khz
Power	2000W-2200W
Inupt	AC110-240V, 50/60Hz
Power Controller	stepping or continuous
Material of Cutting Head	aluminum alloy, stainless steel, titanium alloy, alloy steel.
Machine Wight	4 kg-16KG
Accessories	foot switch, additional blade
Cooling Device	compressed air mouth can be installed.
Cable Length	2M or customized
Foot Switch	available

Advantages:

1.High cutting precision, no deformation of rubber material

2.Good cutting surface finish, good bonding performance

3.Easy to use in automated production

4.Fast speed, high efficiency, no pollution

Detailed Image:
